Ampere’s Law was formulated by André-Marie Ampère, a famous French physicist. He performed experiments using the forces that act on wires that carry current in the late 1820s. This was the time when Michael Faraday was working on Faraday’s Law. Maxwell combined the work of Ampère and Faraday four years later. Ampere’s law is one of the basic and standard laws of physics. It is a basic law that provides a relationship between electric current and the magnetic field around it and is fundamental for learning modern-day electromagnetics.
Also Read: Physics Fun
Ampere’s Law
Ampere’s Law states, “The magnetic field created by an electric current is proportional to the size of that electric current, with a constant of proportionality equal to the permeability of free space.”
According to Ampere’s law, magnetic fields depend on the electric current they produce. It specifies the magnetic field that is associated with a given current and vice versa, provided there is no change in the electric field with time.
Maxwell explains Ampere’s law through the following equation:
Ampere’s law relates electric currents to the magnetic field produced by them. In the case of a straight wire that carries a constant electric current エ, the magnetic field B that is produced at distance r, perpendicular to the wire is given by the equation: B = μoエ/2πr where μo is the permeability constant.
Magnetic Field is the area where magnetic forces act. The standard unit of the magnetic field is 1 Tesla (T).
Current is defined as the flow of electric charges in a conductor. The standard unit of current is 1 Ampere (A).
Distance is the length between the beginning and the end of an object’s movement. The standard unit of distance is 1 metre (m).
The permeability constant is a constant that is often used in electromagnetism.
Ampere Circuital Law
Ampere’s circuital law states, “The line integral of the magnetic field surrounding a closed loop equals the number of times the algebraic sum of currents passing through the loop.”
When a conductor carries a current I, the current flow creates a magnetic field that encircles the wire; this formula can be used to calculate the field.
The left side of the equation describes that if an imaginary path encircles the wire and the magnetic field is added at every point, it is numerically equal to the current encircled by this route, which is denoted by Ienc.
Also Read: Interesting Facts About Physics
Ampere Maxwell Law
A combination of Ampere’s and Faraday’s laws. Maxwell propounded the following formula: “The total current passing through any surface of which the closed loop is the perimeter is the sum of the conduction current and the displacement current.” It is important to remember that both the conduction and displacement currents have the same physical effects.
Also Read: Children’s Science Shows
Notations Used In Ampere’s Law Formula
- μo is the permeability constant with a value of 4π × 10-7 N/A2
- B is the magnetic field
- エ is the flow of current passing through the closed loop
- L is the length of the loop
- r is the wire
Calculating Magnetic Field Using Ampere’s Law

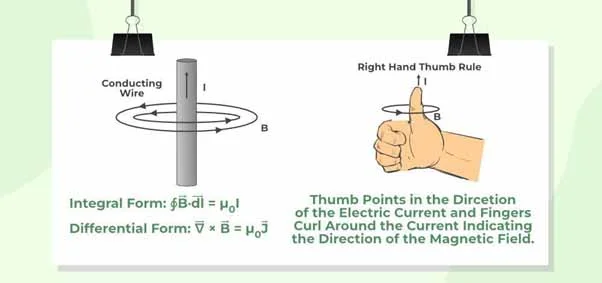

Ampere’s Law is used to calculate the magnetic field at r distance from the wire. This way, for a wire conducting エ current, the magnetic field at distance r can be calculated, and its direction is given using the Right Hand Thumb Rule.
The magnetic field does not show a difference with the change in the distance r. For a closed wire, the length of the path covered is 2πr. So, the value of the magnetic field in that case is B = μoI/2πr.
If H, a constant value, is added to the magnetic field, the equation’s left side appears like this:
Since the wire r is arbitrary, the value of the field H is known.
The magnitude of the magnetic field reduces as we move wider, according to the equation. Therefore, Ampere’s law can be applied to determine the extent of the magnetic field surrounding the wire. The field H is a vector field that shows that each region has a magnitude and a direction. The field’s direction is tangential at every point, and the right-hand rule finds the direction of the magnetic field.
The following steps need to be followed to calculate the magnetic field by Ampere’s law:
- Read the problem and locate the values for the electric current エ and the distance from the wire r.
- Substitute these values into the equation: B = μoI/2πr
- The value for the constant μo is 1.26 x 10−6 Tm/A
- Use this equation to calculate the magnetic field B
- Ensure that the units are correct.
Applications of Ampere’s Law
There are many practical applications of Ampere’s law, but its main application is the calculation of the magnetic field generated by an electric current. In many calculations, Ampere’s law uses a certain symmetry to simplify the process and because of its convenience, has gained a lot of momentum over time. One of the widest applications of Ampere’s Law is in the manufacturing of machines and is used in motors, electromagnets, generators, transformers and other similar devices. All of these employ principles related to the Ampere Circuital Law. This makes it important for students to understand these concepts, as a lot of the things they study in higher classes are based on them. These concepts are the foundation of some of the most important principles and derivations that are relevant in physics.
Some of the common applications of Ampere’s Law include
- Calculates the magnetic field produced by a current-carrying wire.
- Calculates the magnetic induction caused by a long current-carrying wire.
- It determines the magnetic field inside a toroid.
- It creates a magnetic field inside the conductor.
- It provides ways to calculate the force between two conductors.
- It helps to find forces between currents
Students learn the concepts of Ampere’s Law while studying Physics to improve their basic knowledge so that they can tackle the more complex topics that they will study in the future. For more interesting information and a better understanding of this vital topic, visit EuroSchool blogs.
